Secure and reliable

The TS5 is a pre-diagnostic device and offers high-intense sonication of samples to disrupt cells. Closed tubes eliminate aerosols and cross contamination.

The sample tubes are sonicated directly, which makes the process efficient and keeps the cycles short. Each of the five tubes is treated with ultrasound separately but simultaneously. Racks with five tubes can easily be loaded and unloaded.
Unlike with ultrasound baths and cup horns, there is no risk of contamination of the water in the sonication rooms and related aerosols which could be inhaled by the operator.

Panel 1

Features

EASY AND SAFE LOADING
The rack can easily be loaded into and unloaded from the rack holder. The indicators prevent incorrect loading. The risk of cross contamination and aerosols is very low as there is no need for the tubes to be immersed into water for the sonication process

HOMOGENIC SONICATION
Each of the five tubes is treated with ultrasound separately but simultaneously, which makes the results reliable and means it is possible to compare them across the samples

FORCE AND AMPLITUDE REGULATION
Thanks to the regulation of force and amplitude, cell membranes can be disrupted very gently or very abruptly

SHORT CYCLES, LESS HEAT
The direct sonication leads to short cycles and therefore less heat

FULL CONTROL AND HIGH REPRODUCIBILITY
8 freely programmable and 1 preset programmes can be stored on the TS5.

Parameters to set:

Ultrasound on
Ultrasound off
Number of cycles
Force
Amplitude

MINIMUM WEAR
The horn has a long life time as there is no corosion like in a water bath

SECURITY
Emergency stop button

ERGONOMIC WORKSPACE
The display can be turned through 45° and 90°, which means the TS5 can be placed and operated in two working positions. Inside, the TS5 provides space for convenient working

VIEWING WINDOW
to controll the process

COVER TO REDUCE
– noise
– risk of injury

3.5″ COLOUR TOUCH DISPLAY
– can be turned through by 45° and 90°
– intuitive graphical user interface

STATUS LED

INTEGRATED ULTRASONIC CONTOL UNIT

2 YEARS WARRANTY
in accordance with our terms and conditions

EFFICIENT RINCO AFTER SALES SERVICE

Panel 2

Applications

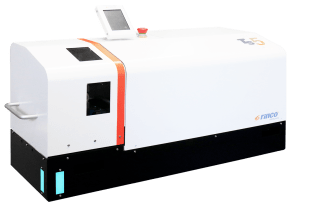

TS5_Applications

Cell disruption
DNA extraction
DNA shearing
DNA fragmentation
Sample homogenisation
Sample emulsifying
Sonochemistry
(list not exhaustive)

Panel 3

Technical specifications

	Drive:	Servo drive
	Power supply:	100 … 125 V ± 10 % 200 … 240 V ± 10 % 50 Hz / 60 Hz ± 5 %
	Power:	600 W
	Weight:	61.5 kg
	Rack type:	MPA rack
	Tubes per rack:	5
	Certifications:	CE, CB
	Norms and regulations:	Machine directive 2006/42/EC EMC directive 2014/30/EU IEC 61010-1
Size	Wide (without handle):	740 mm
	Depth:	340 mm
	Hight (incl. display):	450 mm
